- Products Details
Quick Details
-
Brand Name: Lionball
Model Number: --
Place of Origin: CHINA
Packaging & Delivery
- Packaging Details: carton
- Delivery Detail: 5-30 DAYS
Specifications
AC forward Centrifugal fan YWFF400
—Material: Housing: galvanized sheet steel
Impeller: galvanized sheet steel
Rotor: Coated in black plastic
—Direction of rotation: Clockwise, seen on rotor
—Type of protection: IP54
—Insulation class: B or F
—Mounting position: Shaft horizontal or rotor on bottom; rotor on top on request(Any)
—Condensate discharges: Rotor-side
—Mode of operation: Continuous operation (S1)
—Bearings: Maintenance- free ball bearings
—Motor protection: TOP wired internally
—Cable exit: variable, lateral
—Product conforming to standard: CE Approval
—Approval: UL Approval, CCC Certificate
For more information of centrifugal fan and single inlet centrifugal fans and blowers, please refer to the summary of centrifugal fan.

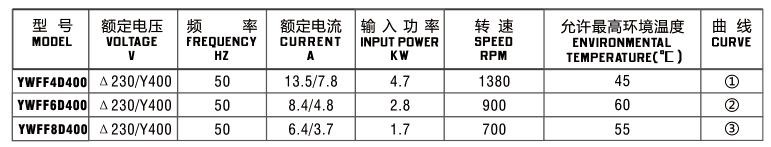

1.performance parameters

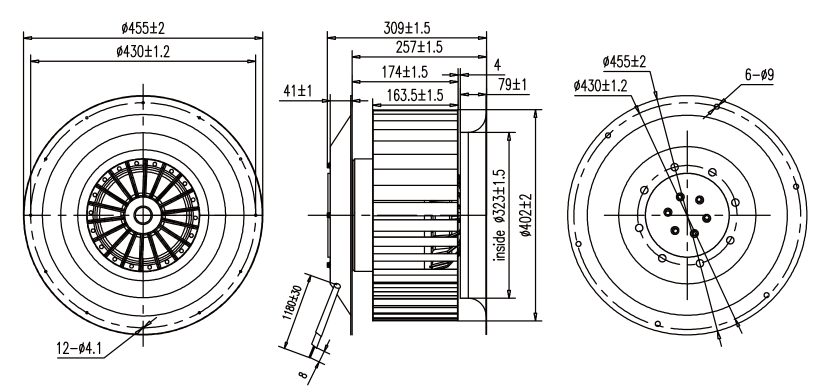

2. shape and the size of installation

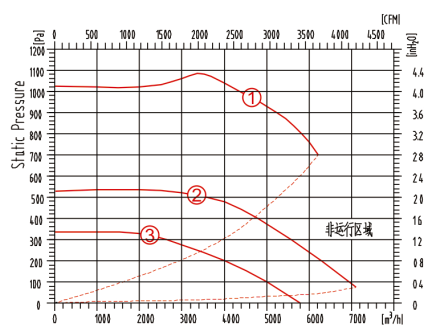

3.air volume and static pressure curve
